KYOSHO MINI-Z 4×4 Crawler Series Ready Set Suzuki Jimny Sierra Kinetic Yellow, 32523Y

Kyosho Kyosho

32523y-0-compressor
32523y-2-compressor
32523y-4-compressor
32523y-5-compressor
32523y-3-compressor
7-compressor-2-3
10-compressor-3
9-compressor-2-3
6-compressor-1-4

KYOSHO MINI-Z 4×4 Crawler Series Ready Set Suzuki Jimny Sierra Kinetic Yellow, 32523Y En savoir plus

253,95

En stock

Description

KYOSHO MINI-Z 4×4 Crawler Series Ready Set Suzuki Jimny Sierra Kinetic Yellow, 32523Y

DOMINATE THE LANDSCAPE!
AMERICAN SPIRIT
Toyota 4Runner Metallic Red
Toyota 4Runner Metallic Red
CAPTURE THE TRUE SPIRIT OF MODIFIED AMERICAN OFF-ROAD CRAWLING MACHINES
Toyota 4Runner Metallic Red
readyset MINI-Z 4×4 Readyset Toyota 4Runner (Hilux Surf) No.32522MR/Metallic Red No.32522GM/Dark Gray Metallic
The sophisticated, realistic and completely new 4x4 Mini-Z chassis design and the highly-detailed bodies can deliver the full RC crawling experience in the convenience of your own home!
MINI-Z MOLDED BODY DETAILS

Injection molded bodies enhanced with accessory parts recreate a level of detail in the MINI-Z 4x4 series that surpasses all MINI-Z bodies that have come before.

CHROME PLATED GRILLE & DOOR HANDLES
CHROME PLATED GRILLE & DOOR HANDLES
The first-generation 4Runner's popular style is undeniable. This Mini-Z 4x4 body features the signature chrome grille, window trim, and rain rails. Customize the 4Runner with optional LED headlights and taillights (MZW429R).
PAINTED BODY
The factory-painted body has so much detail it rivals that of a die cast model. Thicker body material provides more durability, enabling it to survive more aggressive off-road runs. Side-view mirrors, wipers, and antennas are made using a flexible material to make these extremities even more durable. Large wheel flares, heavy duty bumpers with tow loops, push bars, and even chrome door handles and lock cylinders add even more realistic details.
PAINTED BODY
MATTE ROOF / REAR WINDOW
MATTE ROOF
The removable roof section of the 4Runner is reproduced in a very scale, high-quality matte finish to simulate the textured finish of the black fiberglass cap.
REAR WINDOW
The rear of the 4Runner is reproduced with such excellent detail, including the defroster. At a glance, it almost looks as though the rear door and window can be open separately. Of course they're fixed in place on the Mini-Z 4X4 version, but the detail is unmatched.
BODY MOUNT
BODY MOUNT
A newly-designed one-touch body mounting system is used instead of the mounts commonly used on all previous Mini-Z cars and trucks. The new system uses spring-wire retainers to quickly and easily install and remove the body.
CHASSIS & GEOMETRY DETAILS

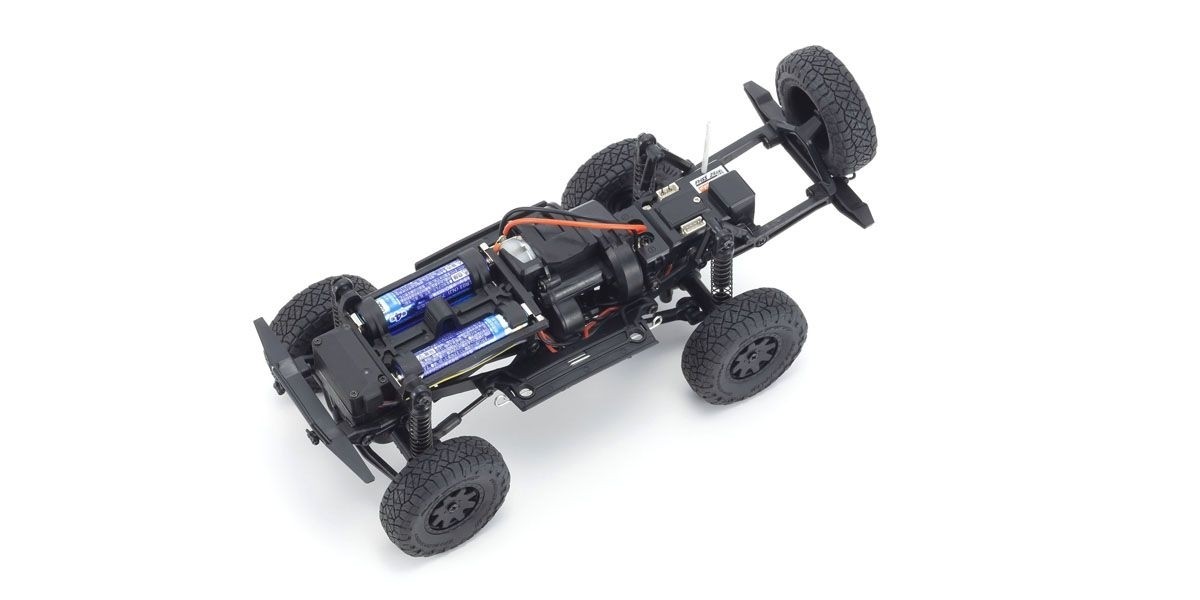

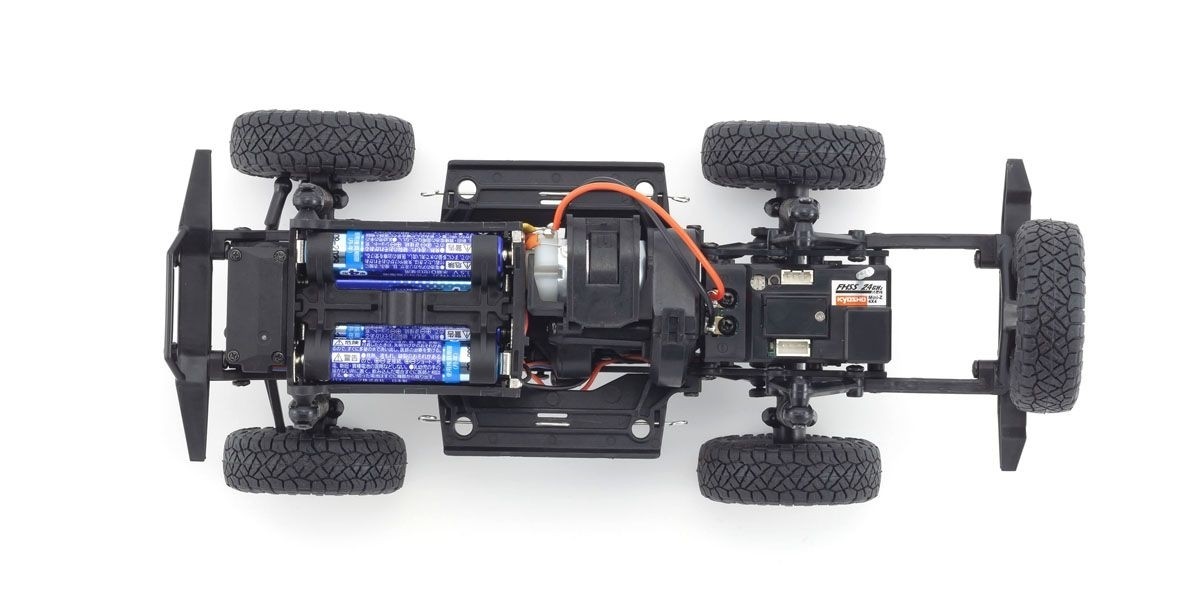

The same ladder frame and multi-link rigid-axle suspension commonly used in popular 1:10-scale off-road models, is condensed into Mini-Z size for the most articulation and performance available in any mini RC truck.

LADDER FRAME
LADDER FRAME
The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates, in combination with various molded parts, to deliver the ultimate balance of of rigidity and flex for superior performance and durability.
SOLID AXLES
SOLID AXLES
Solid front and rear axles feature links with steel rods and captured rod ends. Ring and pinion gears, in addition to other gears and components, feature metal construction to withstand the heavy loads under the toughest driving conditions.
STEEL LINK & BALL END
SOLID AXLES
The upper A-arms and lower links that connect the front and rear axles to the chassis, feature strong steel links and captured ball ends. This is the ideal design for strength, maximum range of motion, and smooth operation.
COIL OVER TYPE, SHOCK ABSORBER
COIL OVER TYPE, SHOCK ABSORBER
The newly designed shock absorbers feature 360-degree spring retainers, which means they can't be lost on the trail and the springs are more likely to re-seat when the suspension settles after hard impacts or operating at the extreme limits of the suspension. The spring retainers simply cannot come loose.
ADJUSTABLE WHEELBASE
The wheelbase can be changed to 110 or 120mm by changing the length of the spacer on the upper A-link. The 4Runner is set to 110mm.
ADJUSTABLE WHEELBASE
STEERING ANGLE
STEERING ANGLE
The front axle features ideal Ackermann geometry. Combined with the advanced design of the axle housing and the other steering components, This model features the tightest turning radius in Mini-Z history. It means the Mini-Z 4x4 has exceptional handling capability for anything ranging from casual driving to hard-core crawling.
DRAG LINK & TIE ROD
The steering servo drag link and the rugged molded tie rod are part of a steering system that delivers an incredible amount of steering angle, which results in excellent rock crawling capability.
DRAG LINK & TIE ROD
TIRES & WHEELS
TIRES & WHEELS
Tires and wheels that are specific to each model are a major focus of the Mini-Z 4x4. This model features a scale reproduction of Toyo Tire's export brand "Nitto Ridge Grappler" tires mounted on custom wheels.
BATTERY TRAY
Four AAA batteries are located on top-front section of the chassis to ensure good ground clearance and achieve realistic rock crawler performance.
BATTERY TRAY


DRIVELINE
GEARBOX AND GEARS
GEARBOX AND GEARS
The gearbox features molded covers and includes 6 pinion gears that allow adjustment from ultra-low gearing for steep terrain, through to high-speed gearing for smooth running on flat roads. In addition, the need for annoying backlash adjustments has been negated with the special spacer mounted on the outside of the motor.
GEARBOX AND GEARS
SLIPPER CLUTCH
A standard slipper clutch protects the drive system by reducing the torque when excessive load is applied. Note the metal upper shaft and primary gear for durability.
SLIPPER CLUTCH
18 FULL BALL BEARING SPECIFICATIONS
18 FULL BALL BEARING SPECIFICATIONS
The best drive efficiency is accomplished with the included set of 18 ball bearings, factory installed to ensure the smoothest most efficient operation possible, right out of the box.
130 MOTOR
130 MOTOR
130 MOTOR
The Mini-Z 4x4 features a specially-designed high-torque motor that is unique in the Mini-Z World. It's optimized for maximum torque, and it develops more power at lower speeds.

ELECTRONICS
NEW SPEED CONTROLLER
NEW SPEED CONTROLLER
The on-board electronics are also unique to the Mini-Z 4x4, with special features that improve the crawling experience. The accessory ports on top of the board allow an optional gyro (MZW431) and an optional LED light set (MZW429R) to be easily plugged in to enhance performance and realism.
STEERING SERVO
STEERING SERVO
STEERING SERVO
The component steering servo features its own casing to allow enhanced performance, and it connects to the receiver/ESC with an independent connector.
FHSS / KT-531P TRANSMITTER
Use when optional light unit is installed
Adjust amount of steering throw
Sponge grip of the steering wheel provides comfortable fit for precision control feel.


Included KT-531P transmitter operates on FHSS 2.4GHz and features steering/throttle trim in addition to dual-rate adjustment of steering angle and LED control functions. Control feel has improved with adoption of sponge steering wheel. Gyro effect can be fine-tuned through volume adjustment.
*Not compatible with conventional ASF/MHS/FHS 2.4GHz systems. Also not compatible with KO I.C.S systems.
KT-531P TRANSMITTER
EXTREME APPROACH ANGLES
VEHICLE SPEC

MINI-Z 4x4 Toyota 4Runner (Hilux Surf)
Technical Data

Scale 1/24
Length 200.5mm
Width 87.0mm
Height 86.0mm
Chassis Type MX-01
Wheel Base 110.0mm
Tread F/R:72.7mm
Weight 223g (excl. battery)
Motor/Engine 130 Class
Gear Ratio 55.44?1 34.65?1
  46.20?1 30.80?1
  39.60?1 27.72?1
Front Tire Diameter ?42.0mm
Rear Tire Diameter ?42.0mm
Front Tire Width 14.3mm
Rear Tire Width 14.3mm
Battery 4 x AAA alkaline
Transmitter Syncro KT-531P
Speed Approx. 3.3km/h?6.6km/h
  (Pinion gears 10T? 20)
Running Time Approx. 60 mins




Readyset Contents

?Complete chassis with built-in electronics.?Factory-painted body complete with many fine details?KT-531P 2.4GHz transmitter?Pinion gear set?10T, 12T,14T, 16T, 18T, 20T??3 types of motor spacers?Pairing stick

Required for Operation

?4 x AAA batteries for the transmitter?4 x AAA batteries for chassis(Alkaline or NiMH)
